- WINDOWS CAN'T INSTALL THE HP ENVY 5530 SERIES KERNEL-MODE PR...

Create an account on the HP Community to personalize your profile and ask a question
04-17-2018 01:05 PM
I have uninstall & reinstall the All New ENVY 5530 SERIES software & drivers from HP website and follow the instructions to the letter and still it will not install and my printer cannot be connected to my laptop. I have been working on this for three days and if I cannot find a solution, I will just have to dump the printer and buy another brand.
Could someone take pity on me and help me out? I would be grateful.
Solved! Go to Solution.
Accepted Solutions
04-17-2018 03:27 PM - edited 04-23-2018 11:09 AM
Procedure is based on Solutions contributed by ShlomiL and greenturtle
Be aware:
- If you have other printers installed on your PC, those printers will need to be reinstalled once completing these steps.
- To complete the tasks, you should be logged in with an account that has administrative privileges.
Settings_Account_Type_1
- User Account Control: Tasks may require administrative authorization to complete. If asked by the system, click through or provide the administrative password.
UAC_Make_Change_1
Preparation – Restore Point
Before making any changes to your system, always create a Restore Point!
- Create Restore Point
Stop all programs: Browsers, games, Applications, etc.
Control Panel > icon view > System > System Protection >
Click (Highlight) your main disk (C) > Select Create a Restore Point
System_Restore_Create_Restore_Point_1
Reference
System Restore XP OR System Restore W7 OR System Restore W8-W10
Preparation - Export Registry (Backup)
Windows key + R (Opens Run menu)
Type regedit
Click OK
Windows_Run_Regedit_1
If necessary, enter Admin password / click through permissions
Click Computer (full backup of entire registry)
File > Export > Enter name for backup > Save
Close registry file
NOTE: The registry is large; it may take several seconds to create the backup file.
Reference
HP PCs - Backing Up, Editing, and Restoring the Windows Registry (Windows 10, 😎
Uninstall / Remove Printer Software from the Computer
Complete the following “remove” procedures as necessary to ensure the software is “gone” from the computer.
- Uninstall printer software from Programs and Features / Apps and Features
Control Panel > icon view > Programs and Features >
Scroll down, find, click on Printer Software > Uninstall
Reference
Uninstalling the Printer Software (Windows)
- Remove printer driver files from Print Server Properties
Use one of the following to open the Print Server Properties dialog window
Press Windows key + R (Opens Run window)
Type printui /s (There is a space between printui and /s)
Click Enter or OK
Windows_Run_Printui_1
OR
Open Control Panel > icon view
Open Devices and Printers
Left-Click any printer to highlight
Click "Print server properties" in the ribbon at the top of the window
Devices_and_Printers_Print_Server_Properties_1
Next – Find and remove the printer(s) from Properties
Click tab Drivers
Left-Click / Select (highlight) the printer (to be deleted)
Click Remove
OK (to save changes and exit menu)
Reminder: Remove both the printer and the “fax” component, too.
Devices_and_Printers_Print_Server_Properties_1B

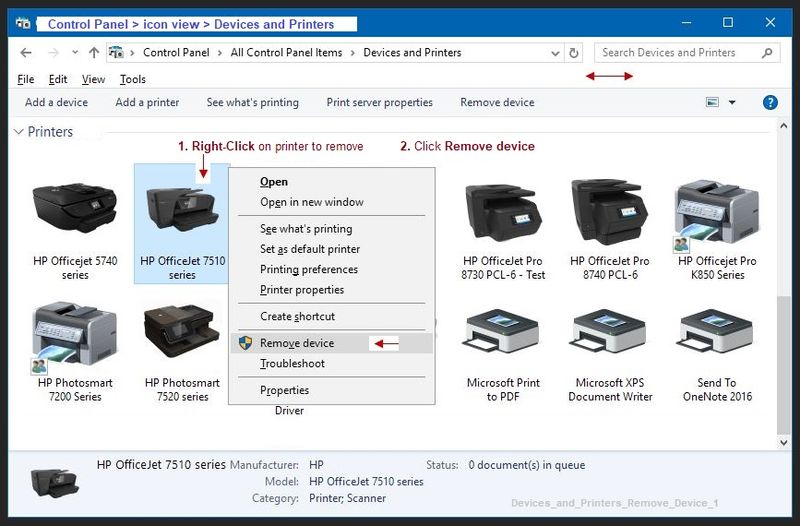

- Remove device from Devices and Printers
If the printer / fax-printer are still lurking about in Devices, remove it / them.
Control Panel > icon view
Open Devices and Printers
Right-Click on printer > Remove Device
Devices_and_Printers_Remove_Device_1
- Restart the computer and log in
Repair Components
- Update the registry - Click on this Reg file (changes some printer related policies)
https://www.dropbox.com/s/avbv56zdgwv7600/kernel.reg?dl=1
- Stop the Print Service
Windows key + R (Run menu)
Type Services.msc and press OK
Windows_Run_Services_1
Locate and stop the Print Spooler
Services_Stop_Print_Spooler_1
- Rename folders
Open File Explorer (formally Windows Explorer) window
Browse to c:\Windows\System32\spool\drivers
Rename W32X86 to W32x86.old
Rename x64 to x64.old
Spool_Driver_Folders_1
NOTE:
- After you click to “Rename” the folder, click through when it asks for administrative permission.
- There may be several second a delay between when you authorize the rename and when it happens.
- If either folder fails to rename,
- Restart the computer and log in,
- Continue (try again) starting at Stop the Print Service
- Restart your computer
Check the results. If necessary, repeat any steps needed to completely remove the software.
Install Full Feature Software
Install the HP Software and check for any difference
Reference
Printer Software - Installation
NOTE: If using USB, disconnect the USB cable between the printer and the computer before starting the installation. Connect the cable when instructed to do so (toward the end of the installation procedure).
Download, save, and install the Full Feature Software for your Operating System version
After the software is installed, Restart the computer and log in
Video help
NOTE: Videos may be found in one or more locations (depending on printer / software / version)
Open the printer Software and Drivers page >
Scroll down and select Related Videos > Click View All >
Find and view the relevant video
AND / OR
Open the printer Homepage >
Scroll down and select Video Tutorials > Click View All >
Find and view the relevant video
Firmware
Consider installing the printer Firmware
READ (when provided) all instructions before installing the firmware
If / After the firmware is installed, Restart the computer and log in
Reminder: Firmware is only updated after the printer software is installed / functional.
++++++++++++++++++++++++++++++++++++++++++
Printer Homepage – “Things that are your printer”
Drivers / Software, Videos, Advisories, How-to, Troubleshooting, Manuals, Product Information, more
HP ENVY 5530 e-All-in-One Printer series
Dragon Document – Collection of Help, suggestions, video links, and examples:
Install Full Feature Software - Printer
Topic: Cannot Install Software
Click Thumbs Up on a post to say Thank You!
Answered? Click post "Accept as Solution" to help others find it.
04-17-2018 03:27 PM - edited 04-23-2018 11:09 AM
Procedure is based on Solutions contributed by ShlomiL and greenturtle
Be aware:
- If you have other printers installed on your PC, those printers will need to be reinstalled once completing these steps.
- To complete the tasks, you should be logged in with an account that has administrative privileges.
Settings_Account_Type_1
- User Account Control: Tasks may require administrative authorization to complete. If asked by the system, click through or provide the administrative password.
UAC_Make_Change_1
Preparation – Restore Point
Before making any changes to your system, always create a Restore Point!
- Create Restore Point
Stop all programs: Browsers, games, Applications, etc.
Control Panel > icon view > System > System Protection >
Click (Highlight) your main disk (C) > Select Create a Restore Point
System_Restore_Create_Restore_Point_1
Reference
System Restore XP OR System Restore W7 OR System Restore W8-W10
Preparation - Export Registry (Backup)
Windows key + R (Opens Run menu)
Type regedit
Click OK
Windows_Run_Regedit_1
If necessary, enter Admin password / click through permissions
Click Computer (full backup of entire registry)
File > Export > Enter name for backup > Save
Close registry file
NOTE: The registry is large; it may take several seconds to create the backup file.
Reference
HP PCs - Backing Up, Editing, and Restoring the Windows Registry (Windows 10, 😎
Uninstall / Remove Printer Software from the Computer
Complete the following “remove” procedures as necessary to ensure the software is “gone” from the computer.
- Uninstall printer software from Programs and Features / Apps and Features
Control Panel > icon view > Programs and Features >
Scroll down, find, click on Printer Software > Uninstall
Reference
Uninstalling the Printer Software (Windows)
- Remove printer driver files from Print Server Properties
Use one of the following to open the Print Server Properties dialog window
Press Windows key + R (Opens Run window)
Type printui /s (There is a space between printui and /s)
Click Enter or OK
Windows_Run_Printui_1
OR
Open Control Panel > icon view
Open Devices and Printers
Left-Click any printer to highlight
Click "Print server properties" in the ribbon at the top of the window
Devices_and_Printers_Print_Server_Properties_1
Next – Find and remove the printer(s) from Properties
Click tab Drivers
Left-Click / Select (highlight) the printer (to be deleted)
Click Remove
OK (to save changes and exit menu)
Reminder: Remove both the printer and the “fax” component, too.
Devices_and_Printers_Print_Server_Properties_1B
- Remove device from Devices and Printers
If the printer / fax-printer are still lurking about in Devices, remove it / them.
Control Panel > icon view
Open Devices and Printers
Right-Click on printer > Remove Device
Devices_and_Printers_Remove_Device_1
- Restart the computer and log in
Repair Components
- Update the registry - Click on this Reg file (changes some printer related policies)
https://www.dropbox.com/s/avbv56zdgwv7600/kernel.reg?dl=1
- Stop the Print Service
Windows key + R (Run menu)
Type Services.msc and press OK
Windows_Run_Services_1
Locate and stop the Print Spooler
Services_Stop_Print_Spooler_1
- Rename folders
Open File Explorer (formally Windows Explorer) window
Browse to c:\Windows\System32\spool\drivers
Rename W32X86 to W32x86.old
Rename x64 to x64.old
Spool_Driver_Folders_1
NOTE:
- After you click to “Rename” the folder, click through when it asks for administrative permission.
- There may be several second a delay between when you authorize the rename and when it happens.
- If either folder fails to rename,
- Restart the computer and log in,
- Continue (try again) starting at Stop the Print Service
- Restart your computer
Check the results. If necessary, repeat any steps needed to completely remove the software.
Install Full Feature Software
Install the HP Software and check for any difference
Reference
Printer Software - Installation
NOTE: If using USB, disconnect the USB cable between the printer and the computer before starting the installation. Connect the cable when instructed to do so (toward the end of the installation procedure).
Download, save, and install the Full Feature Software for your Operating System version
After the software is installed, Restart the computer and log in
Video help
NOTE: Videos may be found in one or more locations (depending on printer / software / version)
Open the printer Software and Drivers page >
Scroll down and select Related Videos > Click View All >
Find and view the relevant video
AND / OR
Open the printer Homepage >
Scroll down and select Video Tutorials > Click View All >
Find and view the relevant video
Firmware
Consider installing the printer Firmware
READ (when provided) all instructions before installing the firmware
If / After the firmware is installed, Restart the computer and log in
Reminder: Firmware is only updated after the printer software is installed / functional.
++++++++++++++++++++++++++++++++++++++++++
Printer Homepage – “Things that are your printer”
Drivers / Software, Videos, Advisories, How-to, Troubleshooting, Manuals, Product Information, more
HP ENVY 5530 e-All-in-One Printer series
Dragon Document – Collection of Help, suggestions, video links, and examples:
Install Full Feature Software - Printer
Topic: Cannot Install Software
Click Thumbs Up on a post to say Thank You!
Answered? Click post "Accept as Solution" to help others find it.
04-19-2018 01:33 AM
Hi, Dragon Fur,
Thank you for taking the time to give me the step by step instructions but I got problems. Why is it my control panel shows Print Qeues instead of Printer icon? I tried typring in printui/s/t2 and it told me file not found but I found it in my Windows C: but when I right-click the Properties, TrustedInstaller(I don't know who) have full control and the rests are given only Read and Read & Execute power. I also don't know why there's ALL APPLICATION PACKAGES and ALL RESTRICTED APPLICATION PACKAGES aside from SYSTEM, TRUSTEDINSTALLER, USER (me) and ADMINISTRATOR.
There are 6 printer user interface application in different files too.
I was so excited that finally I can fix it and then so many problems. Also when I go to Control panel to uninstall the Envy 5530 Basic Device software, it gave me an alert that it cannot process as the files are not found.
I am so discouraged. Maybe I kept deleting and reinstalling the software and got all these errors?
Please, Dragon Fur, kindly help me what to do? Sometimes I feel like my computer was hacked or what but I have Norton antivirus and I always install Windows updates automatically. I am not a computer geek but I am very patient and hope that my printer can be installed and connected to my laptop.
Thanks in advance for your kindness, I await your assitance. Have a blessed day in the Lord!
Sincerely
Veealsy
04-19-2018 01:20 PM - edited 04-23-2018 11:13 AM
Your comments remind me that my efforts to make things easier do not always succeed.
Try the Doctor and see if it will clear / fix the problem:
Information, Diagnostics, Installation Help + FAQ
You have to be logged in (to the computer) with an account that includes administrative privileges. None of this works if you are using a regular "user" account.
To check your account type:
Settings > Accounts
Settings_Account_Type_1
Commentary
There is no guarantee that the previously posted procedure would fix the problem YOU have -- the process is meant to clear any accidental corruption that might have been the result of a recent Windows Update that changed the print environment.
About the "Uninstall software" parts of the process
If the software is not already installed, that is, there is no printer software on the computer, there is no need to (again) remove the printer software.
IF printer driver files show up in Print Server Properties > tab Drivers, Remove
IF the printer shows up in Devices and Printers, Remove
If I think of anything else that might be helpful, I will post back.
Thank you for participating in the HP Community Forum.
We are a community of HP enthusiasts dedicated to supporting HP technology.
04-23-2018 09:19 AM
Dragon-Fur,
I'm sorry to repond so late as I was busy with household stuffs the last few days. Early this morning, I tried on the part of deleting the softwares of my printer and I forgot what I did and finally was able to run that printui/s/t2 and this time I was successful until I cannot find the file spool in system32. I use search and found the file & renamed and also the other file. Then I reinstall the full feature software and restart and log in and also install the firmware and restart & log in and now I can print a document from my word as the printer is now connected.
Dragon-Fur, I really could give you a real, real big HUG for helping me out. I followed every instructions to the detail except the spool part and I am forever grateful to you. You just don't know how the burden has taken off from my shoulder. I don't use much the internet except when I have to check for something and look up at the account but many a time I need to print. Now, I just printed your instructions from the forum and will keep it as a treasure.
A HUGE THANK YOU TO YOU, DRAGONFUR!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
God bless you too in all that you do!!!
Sincerely most grateful,
Alsy
