04-20-2019 03:30 PM
My GT 5820 has slowly been printing more horizontal lines in the test page that I print every week. I went thru the help on it. The tubes are full of ink, and I have run all the aligning and cleaning tests many times. The cleaning and 2nd level cleaning 10 times. It only gets slighty better and then back to worse again.
04-21-2019 02:37 PM
@vsalzer1, Welcome to HP Support Community!
It could be an issue with the printheads. If you have already all the troubleshooting steps from this link, you can try our other support options.
Follow the steps below to reach out to our HP Support team:
1) Click on this link - https://support.hp.com/us-en/contact-hp
2) Select your product type below.
3) Enter the serial of your device.
4) Select the country from the drop-down.
5) Select the appropriate option based on your preference.
6) Fill the web-form and proceed further.
Thank you.
Please click “Accept as Solution” if you feel my post solved your issue, it will help others find the solution. Click the “Kudos/Thumbs Up" on the bottom right to say “Thanks” for helping!
TEJ1602
I am an HP Employee
10-27-2019 07:17 AM
Is the paper moving when you print? If no, then I recommend you clean the paper rollers and check.
Here is how it is done.
-
Turn on printer.
-
Remove paper from the input tray.
-
Press and hold the Power button, press the Cancel button
three times, press the Start Copy Color button
seven times, and then release the Power button.
The printer makes mechanical noises. Wait until the printer is idle and silent before you proceed.
If the paper is moving, then I recommend you root uninstall the printer and then reinstall it and check.
Here is how it is done.
1.) In Windows, search for and open Programs and features
2.) Select your HP Printer
3.) Select Uninstall
4.) In Windows, search for and open Devices and printers
5.) In the Devices and Printers windows look for your HP printer. If you see it listed right-click on it and choose 'Delete' or 'Remove Device'
6.) Open up the run command with the "Windows key + R" key combo.
7.) Type printui.exe /s and click Ok. (Note: there is a space in between “printui.exe” and “/s”)
8.) Click on the "Drivers" tab
9.) Look for HP Printer driver. If you see it Click on it and click Remove at the bottom
10.) Select Ok
11.) Select Apply and Ok on the Print Server Properties windows
12.) Close Devices and Printers
13.) Restart the PC
14.) Download and install the printer software from the below link.
If you wish to show appreciation for my efforts, mark my post as Accept as Solution. Your feedback counts!
Cheers!
The_Fossette
I am an HP Employee
10-27-2019 11:41 AM

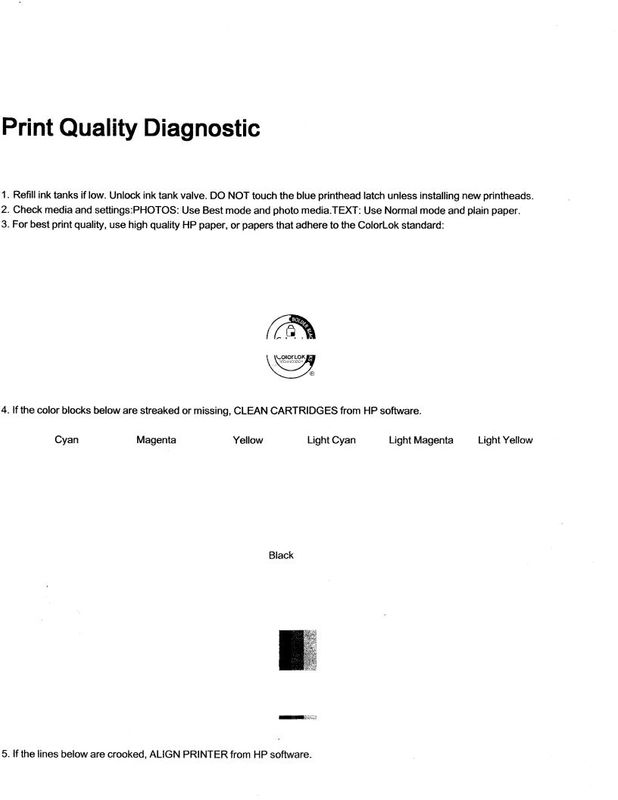

Thanks for your detailed reply. I did all the things you suggested, but... I attached some of the printing. It seems like the top margin is too large, so it prints off the end of the page.
The print also seems to be good for about a third of a page, then starts to print over itself.
I tried to add a video of it trying to print the test page but it gives a circle with a strike thru on the "Insert Video" button.
The test page only prints part of the top logo and then just goes back and forth.
It cannot print an alignment page. The error is 3221225477 (0xC000005) and the toolbox stops working and shuts down.
You mentioned cleaning the rollers. I have cleaned everything I can get to. Do you have any instructions on how to access them easier. I am a former printer technician, so I can handle disassembly.
10-28-2019 08:21 AM
I recommend you contact support to further diagnose the issue.
Here is how you can get in touch with support.
1)Click on this link – www.hp.com/contacthp/
2)Select the product type.
3)Enter the serial number of your device or select let HP detect your product option.
4)Select the country from the drop-down.
5)You should see the HP phone support number or Chat option listed.
Cheers!
The_Fossette
I am an HP Employee
