HP Deskjet 4220e margin issues

[Sama_theone]

Hi,

i have an issue to print 10x15 photo.

i would like to print , by all software, an image on 10x15 paper but i have two issues.

1) i cannot remote the margin

2) the margin on the right is bigger than left margin (1cm) , i seems that the print page size is more little than the paper

i try to remove the driver and re-install but nothing...the issue is still ... how can i to solve?

Thanks to everybody

[Dragon-Fur]

@Sama_theone

Welcome to the HP English Community --

DeskJet printers are not like other printers.

The printer does not support Borderless printing.

AND

The printer requires the larger margin along the bottom edge.

=============================

Printer - Margins

Printing - Important -

The printer requires a larger margin along the bottom edge (1/2 inch).

Borderless Printing

No

Print Margin Bottom (A4)	12.7 mm
Print Margin Left (A4)	3 mm
Print Margin Right (A4)	3 mm
Print Margin Top (A4)	3 mm

There is no software, firmware, or alignment that changes the larger margin requirement.

The solution to "chopped off" is to keep all data inside of 1/2 inch / 12.7mm on the bottom edge.

This limitation includes all text, images, page numbers, footer information, cells, tables, lines, other notations, and all file types, too.

Create your original document with 12.7mm ( 1/2 inch ) margins.

Alternatively, and where it will work for you, Print the content as "Fit", "Shrink to Fit", or a percentage of 100% that will capture all the content on the page.

=============================

Message Content References

HP DeskJet 2800, 4200, 4900 Printers - Blinking lights and error codes

User Guide – HP DeskJet 2800e DeskJet 4200e All in One Series

Technology Tips Video Gallery from our HP Expert greenturtle

 Technology Tips YouTube Video Help for Printers

and

 Technology Tips - DeskJet 4200e

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

References / Resources

HP Printer Home Page - References and Resources

Learn about your Printer - Solve Problems

“Things that are your printer”

When the website support page opens, Select (as available) a Category > Topic > Subtopic

NOTE: Content depends on device type and Operating System

Categories: Warranty Check, Alerts, Troubleshooting, Ink & Paper, HP Software & Drivers / Firmware Updates, Setup & User Guides, Product Specifications, Account & Registration, Warranty & Repair

Open

 Product Home - Printers

 Enter the device type and model name of your HP product

OR

 Select a saved product from HP Account Dashboard

OR

HP DeskJet 4220e All-in-One Printer

Thank you for participating in the HP Community --

People who own, use, and support HP devices.

Click Yes to say Thank You

Question / Concern Answered, Click my Post "Accept as Solution"

[Sama_theone]

Hi,

thanks a lot for your response.

I agree with you about A4, but i have a lot of difficult to have a good solution for 15x10 format.

always when i print the photo on 15x10 format i have the same margin , like A4.

i think it's not usefull to keep this margin.

is there a way to have the same margin on 15x10 format?

Thanks for your help

Regards

[Dragon-Fur]

@Sama_theone

You are welcome.

OK - Windows.

The print apps and print software options are good in Windows --

That said...

Nothing helps that required 12.7mm (1/2 inch) margin disappear.

Why?  DeskJet Printer wants that bottom margin larger.

Rotate the image to print in Landscape and the margin moves to the side.

Print Pictures limits Options > Printer Properties to those the printer supports.

🐀🐀🐀

If you want to (or must) use Print Pictures

If you want the image to print at 4x6,

Try using full size paper (A4) - and set the paper size in Print Pictures to A4, too.

Set "Copies of each picture" to 1 (one)

On the right side, select 10x15 / 4x6 inch (second choice from top / full size photo).

Print the photo and cut out the printed image.

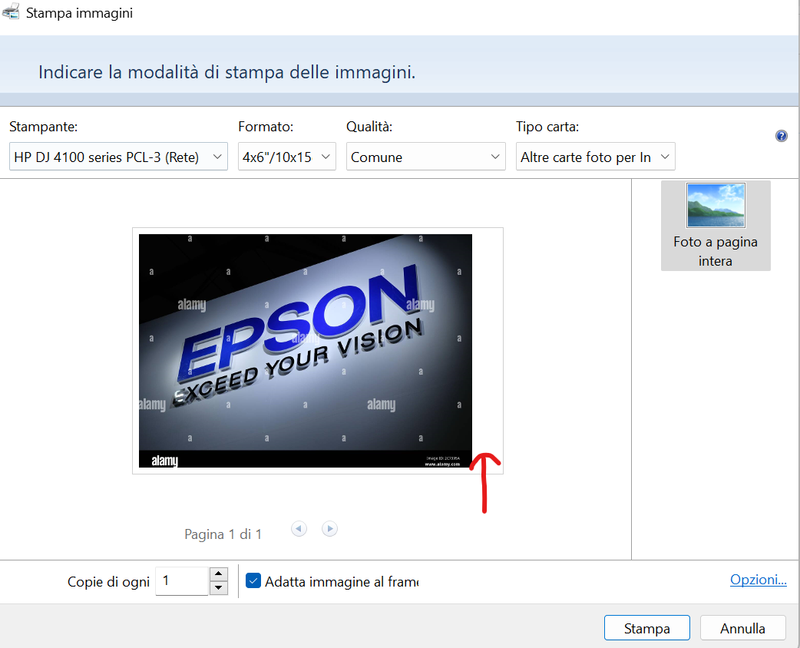

Simple Example - Print Pictures - Full Size Paper and one 4x6 inch photo (10x15 cm)

==========================================================

HP Smart - Windows can print the image in 10X15 / 4x6 inch on larger paper.

Do that and then cut out the image.

Yes, I know.  Not what you want.

HP_Smart_Win_Simple_Photo_Print_Letter_4x6_2

Windows Photos also includes a "select size" feature to print smaller image on larger paper.

Photos_Print_Letter-5x7_4
