If none of the tabs are broken reassemble as follows.

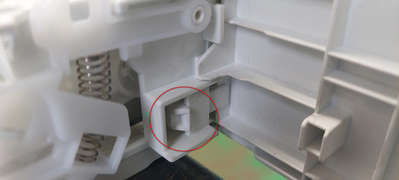

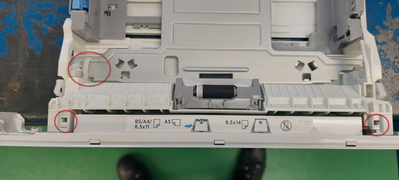

with the tray facing up, notice the hook on the left and right sides, you start by tilting the front door so that the top is closest to the printer and place the top over the two hooks. You also need to make sure that the paper height indicator is inserted properly over the metal lift part of the tray. It must be captured between the top and bottom parts of the C shaped plastic piece, second picture shows close up.
Once the indicator is seated and the top is secure, push the bottom of the front towards the tray until the side tabs and bottom tabs lock into place.
If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
HP Recommended
If none of the tabs are broken reassemble as follows.
with the tray facing up, notice the hook on the left and right sides, you start by tilting the front door so that the top is closest to the printer and place the top over the two hooks. You also need to make sure that the paper height indicator is inserted properly over the metal lift part of the tray. It must be captured between the top and bottom parts of the C shaped plastic piece, second picture shows close up.
Once the indicator is seated and the top is secure, push the bottom of the front towards the tray until the side tabs and bottom tabs lock into place.
If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.
