My printer doesn't print A3 papers correctly (HP OfficeJet Pro 7740)

[Emanuele18]

Hi
I'm having some troubles while trying to print A3 documents; the horizontal lines are printed like this "////" instead of this "____". Although, when I use my phone to print A3 PDFs, i have no problems, the documents are perfect. What could be the problem?

My OS is WINDOWS 11

[Dragon-Fur]

@Emanuele18

Welcome to the HP English Community --

Check both of the following on the Windows system:

• The Full Feature Software / full driver printer software must be installed.

and

• The HP Driver must be selected in Printer Properties as opposed to the Windows / IPP Driver set.

What?  Windows print drivers do not do well with A3 printing.

==================================

Printer - Full Feature Software

HP Full Feature Software / Full Driver printer software - supports printing and scanning from the web, printing in in other software and programs (for example, Word), and provides access to the full range of Printing Preferences / Shortcuts.  The full driver generally adds at one, possibly least one, possibly two shortcuts to the Desktop: Printer Assistant, HP Scan Assistant, and/or HP Scan.

NOTES:

HP Scan is not installed if the printer does not support Scan.

The Printer Assistant is not installed if the type of full driver software does not support it.  If the printer model includes built-in Fax hardware, the software supports the setup and use of the Fax driver. No Sign-in required.

Reinstalling?

• Uninstall existing full driver printer software from Programs and Features.
• If your printer includes a separate "help" in Programs and Features, uninstall that, too.
• Restart the computer and log in.
• If the printer is connected to the computer using a printer USB cable, remove / disconnect the cable before loading the software.

Details Page - Driver - For your Printer

>>> Full Feature Software - Web Pack Installation Package - Information - Download / Save / (then) Install <<<

HP OfficeJet Pro 7740 Wide Format All-in-One Print and Scan Driver and Accessories

If / When asked, opt for the Full Driver / Full Software to be installed.

After the software is installed, Restart the computer and sign in.

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

The installation of the full driver generally adds at least one or more shortcuts to the Desktop.

 Note:  Printer Assistant, HP Scan Assistant, and HP Scan are dependent on printer model and supported software options.

• Printer Assistant – Where still supported as part of the full driver printer software
• HP Scan Assistant – For those printers that no longer provide the Printer Assistant
• HP Scan – Shortcut on Desktop named for the printer model
• When installed, HP Universal Scan software adds a separate self-named “HP Scan” shortcut

Printer Assistant shortcut > Tab Scan > Manage Scan to Computer > Enable

Or

HP Scan Assistant shortcut > Manage Scan to Computer > Enable

Example - Windows - Full Feature Software - Installed

Programs_and_Features_Printer_Desktop_Icons_14

=== --- === --- === --- === --- ===

Windows - Printer Properties - Driver Selection

Microsoft / IPP Class drivers do not provide full access to the printer features.

Install the Full Feature Software for the printer and then check Printer Properties

 Check the Printer Properties are correctly selecting the HP Driver.

Windows 10

Control Panel > icon view > Devices and Printers

Right-Click on Printer > Printer Properties > Tab Advanced

Windows 11

Settings > Bluetooth & devices > Printers & scanners > Select Printer >

Printer Properties > Tab Advanced

Top section

Driver:  Check that the HP driver is selected as opposed to the Microsoft / IPP class driver

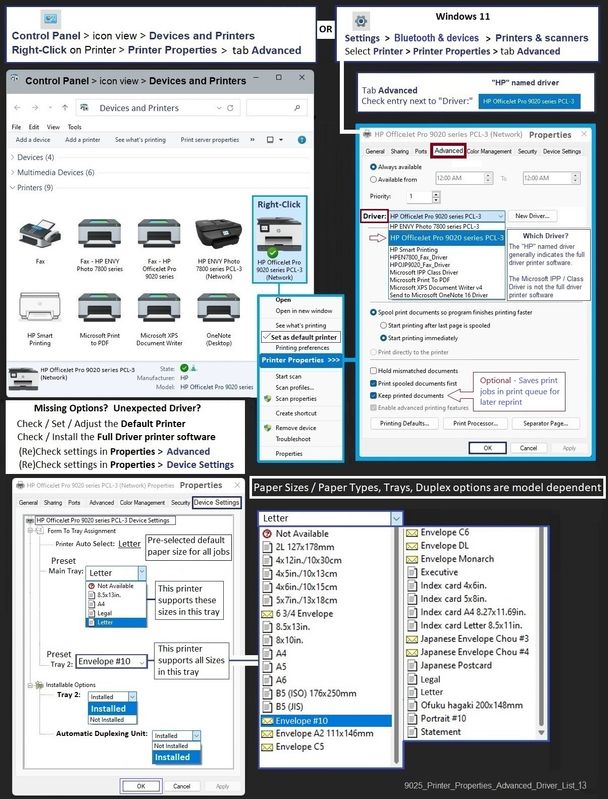

Example - Printer Properties

Top right corner of example

9025_Printer_Properties_Advanced_Driver_List_13

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

References / Resources

HP Printer Home Page - References and Resources

Learn about your Printer - Solve Problems

“Things that are your printer”

When the website support page opens, Select (as available) a Category > Topic > Subtopic

NOTE: Content depends on device type and Operating System

Categories: Alerts, Troubleshooting, Ink & Paper, HP Software / Drivers / Firmware Updates , Setup & User Guides, Product Specifications, Account & Registration, Warranty & Repair

Open

 Product Home - Printers

 Enter the device type and model name of your HP product

OR

 Select a saved product from HP Account Dashboard

OR

HP OfficeJet Pro 7740 Wide Format All-in-One Printer series

Thank you for participating in the HP Community --

People who own, use, and support HP devices.

Click Yes to say Thank You

Question / Concern Answered, Click my Post "Accept as Solution"
