I need to set custom size for printing on Officejet Pro 8130e

[frick1]

HP OfficeJet Pro 8130e I need to set custom paper size, but have not figured out a way to do it. And its a problem if I try to find a size close to what I need.

[Dragon-Fur]

@frick1

Welcome to the HP English Community --

Creating / Using Custom Paper Size Form

Supported versions of Windows

• If not done, install the full driver printer software

• Create a Custom Paper Size Form in Printing Preferences

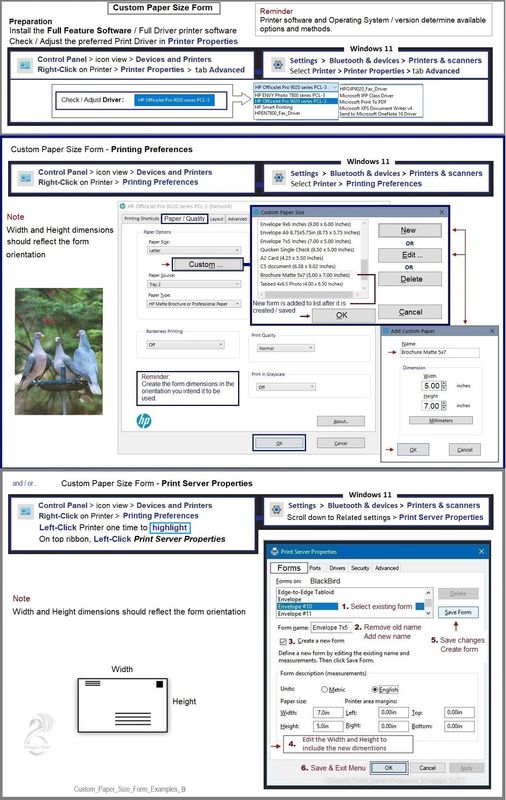

  Custom_Paper_Size_Form_Examples_9

• Check / Adjust the printer Tray and Paper Size and Type using either the touchscreen Printer Control Panel or the Embedded Web Server (EWS)  -- If available on your printer, set the paper size to size "Custom".
• NOTE >> If size "Custom" is not available, then skip this step.

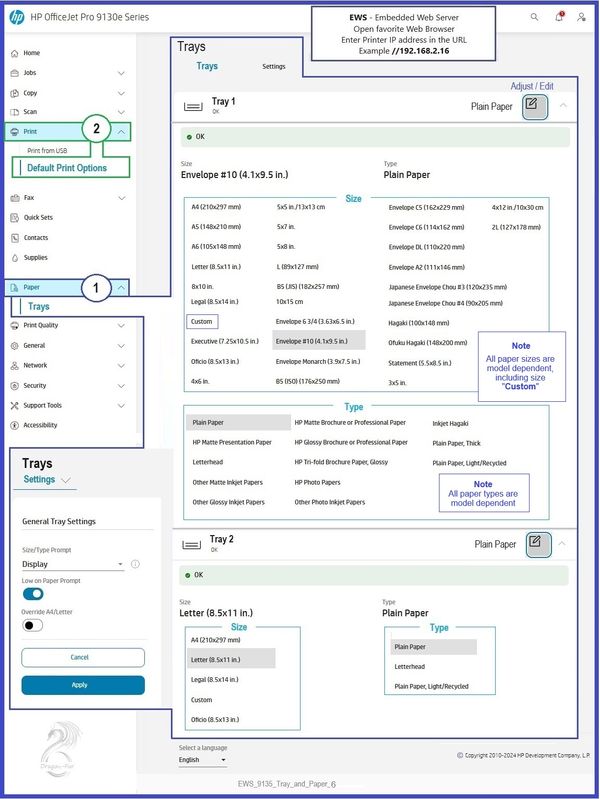

  EWS_9135_Tray_and_Paper_6

          Reminder > Trays, Options, including Paper Sizes and Types are model dependent.

• Open Printer Properties > tab Advanced > make sure Driver = the HP driver and not the Microsoft or IPP driver.
• Note that the example illustrates Driver selection and the optional feature / setting "Keep Printed Documents"
  Printer_Properties_Reprint_6

Next,

Open the app / software you are using to print the content, configure the job, and print

==========================================

Message Content References

------------------------------   Important  ----------------------------------

There is a lot of information in the following sections.

Why?

The answers to your questions include hidden complexity, some of which is important.

Depending on the subject and section, some information might be repeated.

Skip what you do not need.

-----------------------------------------------------------------------------

Media Specifications

Borderless Printing

Yes, on Photo & Brochure only (up to 8.5 x 11 in US Letter, 210x297 mm in A4)

Media Size (facet)	Letter; A4; Legal; B5
Media Sizes Custom (imperial)	Tray 1: 3 x 5 to 8.5 x 14 in
Media Sizes Custom (metric)	Tray 1: 76.2 x 127 to 215.9 x 355.6 mm
Media Types	Plain Paper, HP Photo Papers, HP Matte Brochure or Professional Paper, HP Matte Presentation Paper, HP Glossy Brochure or Professional Paper, Other Photo Inkjet Papers, Other Matte Inkjet Papers, Other Glossy Inkjet Papers, Thick Plain Paper,Light/Recycled Plain Paper,HP Tri-fold Brochure Paper, Glossy
Media Weight Recommended (imperial)	16 to 28 lb (plain paper); 60 to 75 lb (photo); 20 to 24 lb (envelope); 90 to 110 lb (card)
Media Weight Recommended (metric)	60 to 105 g/m² (plain); 220 to 280 g/m² (photo); 75 to 90 g/m² (envelope); 163 to 200 g/m² (card)
Media Weights Supported, By Paper Path (Imperial)	16 to 28 lb (plain paper); 60 to 75 lb (photo); 20 to 24 lb (envelope); 90 to 110 lb (card)
Media Weights Supported, By Paper Path (metric)	60 to 105 g/m² (plain); 220 to 280 g/m² (photo); 75 to 90 g/m² (envelope); 163 to 200 g/m² (card)

Details

====================================

Printer Software

If you have not yet done so, install the Full Feature Software / full driver printer software.

HP Full Feature Software / Full Driver printer software - supports printing and scanning from the web, printing in in other software and programs (for example, Word), and provides access to the full range of Printing Preferences / Shortcuts.  The full driver generally adds at one, possibly least one, possibly two shortcuts to the Desktop: Printer Assistant, HP Scan Assistant, and/or HP Scan.

NOTES:

HP Scan is not installed if the printer does not support Scan.

The Printer Assistant is not installed if the type of full driver software does not support it.  If the printer model includes built-in Fax hardware, the software supports the setup and use of the Fax driver.

No Sign-in required to use full driver printer software.

Reinstalling?

• Uninstall existing full driver printer software from Programs and Features.
• If your printer includes a separate "help" in Programs and Features, uninstall that, too.
• Restart the computer and log in.
• If the printer is connected to the computer using a printer USB cable, remove / disconnect the cable before loading the software.

>>> Full Feature Software - Web Pack Installation Webpage - Information - Download / Save / (then) Install <<<

HP OfficeJet Pro 8130 series EasyStart Printer Setup Software - Offline Use Only

In general, the web pack should load -

Download package > Save > Right-Click on the installation Package > Run as Administrator

If / When asked, opt for the Full Driver / Full Software to be installed.

Using USB?  (Re)Connect when instructed to do so.

After the software is installed, Restart the computer and sign in.

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

Optional -- Supported by your printer

Details Page - Driver - For your Printer

>>> Full Feature Software - Web Pack Installation Package - Information - Download / Save / (then) Install <<<

 HP Universal Scan Full Feature Software

If needful, choose a different OS > Open all

If asked, opt for the Full Driver to be installed.

After the software is installed, Restart the computer and sign in.

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

The installation of the full driver generally adds at least one or more shortcuts to the Desktop.

 Note:  Printer Assistant, HP Scan Assistant, and HP Scan are dependent on printer model and supported software options.

• Printer Assistant – Where still supported as part of the full driver printer software
• HP Scan – Shortcut on Desktop named for the printer model

OR

• HP Scan Assistant – For those printers that no longer provide the Printer Assistant
• HP Scan - Shortcut named for itself

AND / OR

• When installed, HP Universal Scan software adds a separate self-named “HP Scan” shortcut

Printer Assistant shortcut > Tab Scan > Manage Scan to Computer > Enable

Or

HP Scan Assistant shortcut > Manage Scan to Computer > Enable

Example - Desktop Shortcuts

Printer_Assistant_Scan_Assistant_Shortcut_Icons_on_Desktop_9

Programs_and_Features_Printer_Desktop_Icons_20

=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=--=

References / Resources

HP Printer Home Page - References and Resources

Learn about your Printer - Solve Problems

“Things that are your printer”

When the website support page opens, Select (as available) a Category > Topic > Subtopic

NOTE: Content depends on device type and Operating System

Categories: Warranty Check, Alerts, Troubleshooting, Ink & Paper, HP Software & Drivers / Firmware Updates, Setup & User Guides, Product Specifications, Account & Registration, Warranty & Repair

Open

 Product Home - Printers

 Enter the device type and model name of your HP product

OR

 Select a saved product from HP Account Dashboard

OR

HP OfficeJet Pro 8135e All-in-One Printer
