Locked

‎06-16-2020 01:21 PM

HP Recommended
Product: M425dn

I was wondering if there was a way to find a part number for a control panel assembly, since the one listed in the service manual only marks up for the control panel without the holder that would be part of its assembly.  If not would the top cover include the mounting bracket for the control panel?

4 REPLIES 4

‎06-16-2020 02:06 PM

HP Recommended

CF288-60116 is the part number for the control panel

If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



Was this reply helpful? Yes No

‎06-16-2020 04:58 PM

HP Recommended

With that part number does it include the hinge that the control panel is to connect to?  Reason that I am asking is to make sure its the full assembly and not just the control panel that has to be attached to a plastic cradle that then can be clicked into place on the printer and secured with the 2 screws.

Tags (1)
Was this reply helpful? Yes No

‎06-16-2020 05:40 PM

HP Recommended

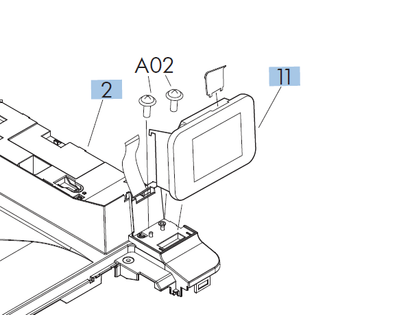

here is an illustration of the part #11 in the picture. The screws are not included






If you find the information provided useful or solves your problems, help other users find the solution easier by marking my post as an accepted solution. Clicking "yes" on "was this reply helpful" also increases the chances that this solution will help others.
I am a volunteer, offering my knowledge to support fellow users, I do not work for HP nor speak for HP.



Was this reply helpful? Yes No

‎06-22-2020 06:00 AM - edited ‎06-22-2020 06:03 AM

HP Recommended

In the picture where it is labeled at #11 if I were to order that part would it include the plastic bit on the back of the control panel?  (it would be where you see the hook on the back of the control panel)



The part number in the service manual that I was told that would be the assembly (which it isn't) is CF286-60601 which is just the display without the bracket.

Was this reply helpful? Yes No
