The Poly Phones Knowledge Base is live! We look forward to helping you with common issues and troubleshooting advice!
HP Recommended

The below can easily be archived using a Poly Clariti Manager formally known as ResourceManager RPRM or Poly Lens >here< using this method >here<



Poly Lens



In Poly Lens use the Resource Section >here< to upload a directory created as explained >here<



Jun 17, 2015 Question:How can I add  a Speed Dial to the Phone?

Resolution: Please check => here <=



A Poly Trio in Skype for Business mode will not enable the Local Contacts. Please use this configuration to allow this if required:



<test feature.directory.enabled="1" />

Note: A sample CFG of the above to enable or disable is attached. Download the ZIP file and unpack it



Each Version of SIP / UCS Software downloaded from the Polycom Support Page => here <= contains an example directory template called 000000000000-directory~.xml






Note: An example file from UCS 4.0.3 is attached. Download and Unzip



The "~" in the name prevents a phone from loading this after it has been flashed with a new Software Revision.



First, It will attempt to download a <mac>-directory.xml.



Once the ~ has been removed and a Phone is newly provisioned (Out of the box) or factory reset it will attempt to download this file and add the 3 example Extensions within.



The exact layout of the expected file structure and XML tree is explained in the Admin Guide matching the SIP / UCS Version running on the Phone.






This is the expected behavior and after a reboot, the Phone will no longer download (please see below update when using UC Software 5.4.0 or later)  this file as the phone already contains a valid copy of this.



If an end-user makes any changes to their local contact directory entries the phone will attempt to store a <mac>-directory.xml on the Provisioning Server.



Users can be prevented from making changes to the local copy of the <mac>-directory.xml located on the Provisioning server. Details can be found in the Admin Guide matching the SIP / UCS Version running on the Phone.



A reboot will load the original <mac>-directory.xml and return the Phone to its default state before a user adds a Number.



Supported Fields:



<ln> Last Name UTF-8 encoded string of up to 40 bytes The contacts last name.
<fn> First Name UTF-8 encoded string of up to 40 bytes The contacts first name.
<ct> Contact UTF-8 encoded string containing digits (the user part of a
SIP URL) or a string that constitutes a valid SIP URL
Used by the phone to address a remote party in the same way that a string of digits or a SIP URL are dialed manually by the user. This element is also used to associate incoming callers with a particular directory entry.
The maximum field length is 128 characters.
Note: This field cannot be null or duplicated
<sd> Speed Dial Index 1 to 9999 Associates a particular entry with a speed dial key for one-touch dialing or dialing from the speed dial menu. The amount depends on the Phone Type. Check the Admin Guide for details. UC Software 5.3.0 or later changed the One Touch dialing via the Speed Dial and ending with # to 01 to 99 only
<lb> Label UTF-8 encoded string of up to 40 bytes The label for the contact. The label of a contact directory item is by default the label attribute of the item. If the label attribute does not exist or is Null, then the first and last names form the label. A space is added between first and last names.
Note: For GENBAND, the Label element is shown as Nick Name, and is a mandatory, non-duplicate field.
<pt> Protocol The protocol to use when placing a call to this contact VVX1500, VVX500 and VVX600 only
<rt> Ring Tone 1 to 21 When incoming calls match a directory entry, this field specifies the ringtone to be used
Note: Ring Tone 1 is Silent (no ring tone) and changes the way the phone handles incoming calls. See Quick Tip 36787
<dc> Divert Contact UTF-8 encoded string containing digits (the user part of a
SIP URL) or a string that constitutes a valid SIP URL
The address to forward calls to if the Auto Divert feature is enabled
<ad> Auto Divert 1 or 0 If set to 1, callers that match the directory entry are diverted to the address specified for the divert contact element.
Note: If auto-divert is enabled, it has precedence over auto-reject.
<ar> Auto Reject 1 or 0 If set to 1, callers that match the directory entry specified for the auto-reject element are rejected.
Note: If auto divert is also enabled, it has precedence over auto reject.
<bw> Buddy Watching 1 or 0 If set to 1, this contact is added to the list of watched phones.
<bb> Buddy Block 1 or 0

If set to 1, this contact is blocked from watching this phone



<up>

User Photo 1-24

The contact's photo icon set by the icons.x parameter. Only Trio UC Software 5.8.0 or CCX in openSIP or Skype for Business



VVX UC Software 6.4.0 or CCX 7.2.1 added a new supported field for the Outgoing Line Parameter

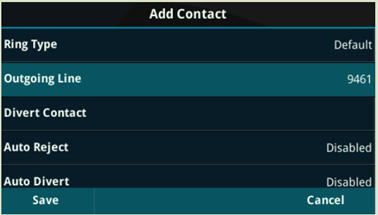

<ol> Outgoing Line 0-Amount of lines per phone
0 is first line
Add an Outgoing Line to a contact’s directory information to specify the line to use for the contact. This



Jul 07, 2015 Question: Unable to answer an incoming call via the Handset if silent ringer is selected?

Resolution: Please check => here <=



Current Speed Dial Index Ranges:





Phone Model Range
SoundPoint IP 321, 331, 335 1 – 99
SoundPoint IP 450, 550, 560, 650 and 670 1 – 9999
The maximum number may be limited by the phone’s available memory.
SoundStation IP 5000, 6000, and 7000 conference phones 1 – 99
SoundStation 1 – 99
VVX 101, 201 1 – 99
VVX 150,250,300,301,310,311,350,400,401,410,411,450,500,501,600,601 1 – 500
VVX 1500 1 – 9999
The maximum number may be limited by the phone’s available memory.





Sort Order of the Speed Dials



The Factory default of dir.search.field="0" sorts by Last Name:






The suggested change of dir.search.field="1" sorts by First Name:






This is without searching.





Incoming Call Identification:





An incoming call can also be identified via a Name rather than a number when utilizing the up.useDirectoryNames="1" Parameter.



NOTE: This feature is activated as a standard in UCS 4.0.0!

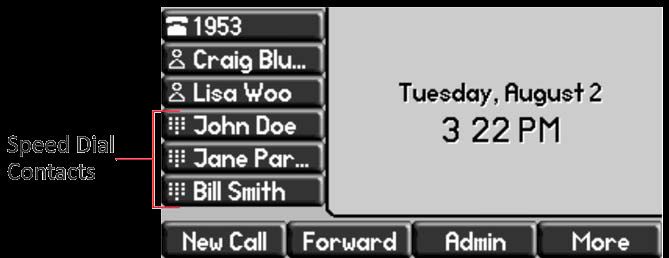

Using the Speed Dial / Favorite Field:



The <sd> field can be used for Speed Dials to directly Dial certain Numbers without having to browse the local directory.



NOTE

  • VVX 300, 310, 400, 410, 500, 600 Maximum of 500
  • VVX1500 and SoundPoint IP 450, 550, 560, 650, 670 Maximum of 9999 (Note that the maximum is limited by the phone's available memory.)
  • SPIP 321, 331, 335, and all SoundStation IP conference phones with a Maximum of 99



To dial this number you would simply dial the digit(s) that you specified in the <sd></sd> section and then press #



If you use the Lauren Gates as shown above you would dial 13# and the contact 555555556 would be dialed.



The Numerical Entry in the <sd></sd> field also defines the Position of the Speed Dial that is applied to the free line keys on a Phone.



The <sd></sd> is not mandatory and can be left out of the XML structure if you want to prevent for Speed Dials to be automatically populated on the free phone keys. You can still dial them from the phone directory.






If maintaining multiple local copies of individual <mac>-directory.xml files is to complicated for an local Administrator, Polycom recommends to utilize the Corporate DirectoryFacility.



A free Non VQMon Site License for the above corporate directory can be downloaded => here <=



Automation:



  • A script to automatically create this file based on a CSV file can be found => here <=

  • A user Created Excel MACRO can be found => here <=



Please check your Admin Guide matching the SIP / UCS Version running on the Phone.



Troubleshooting:



Changing the Support Object Log level to event 3 via the Web Interface






or via a configuration file:



<log log.level.change.so="3" />



Will show the Directory Entry that is being used to identify an incoming phone number either in the <mac>-app.log file on the provisioning server or via the Web Interface (> UCS 4.0.0)



003807.664|so   |3|00|[SoNcasC]: 'soGetDirName (0xc90660)' - Returned (TestPhonebook)











------------------------------------------------
Notice: I am an HP Poly employee but all replies within the community are done as a volunteer outside of my day role. This community forum is not an official HP Poly support resource, thus responses from HP Poly employees, partners, and customers alike are best-effort in attempts to share learned knowledge.
If you need immediate and/or official assistance for former Poly\Plantronics\Polycom please open a service ticket through your support channels
For HP products please check HP Support.

Please also ensure you always check the General VoIP , Video Endpoint , UC Platform (Microsoft) , PSTN
2 REPLIES 2
HP Recommended

Global Directory Synchronization

UC Software 5.4.0 or later only



The Polycom Contact Directory available on Polycom phones uses two files to generate and maintain a directory.



Previously, the Global Directory was loaded onto the phone only once, from the 00000000-directory.xml file, and was copied into a phone specific Personal Directory file (<MAC>-directory.xml).



Thereafter, only the Personal Directory file was loaded or modified by the phone. This made it difficult to make changes to the Global Directory and have those changes updated on all phones without manually editing each Personal Directory file.


This feature changes the way directory files are managed and used by VVX phones. It enables administrators to update the Global Directory file and have that update apply to all phones on the network.



With this release (UC Software 5.4.0 or later), the phone will no longer copy the entire Global Directory file to the Personal Directory file.





The Personal Directory file will only contain contacts that have are edited by the user.


Any new or modified contacts in the Global Directory file are saved in the Personal Directory file and uploaded to the server.



The Personal Directory xml file will not contain any unmodified contacts that come from the Global Directory file.



Both the Global and Personal Directory files are downloaded to the phone after each restart or upon receipt of a checksync NOTIFY message.



The content of the Global Directory file will be combined with the content of the Personal Directory file for display and use on the phone.



Any changes to either the Global or Personal Directory files are reflected in the directory on the phone. When merging the two files, the Personal directory will always take precedence.



Thus, if a user modifies a contact from the Global Directory, the contact is saved in the Personal Directory file, so when the files are next uploaded, the contact from the Global Directory is ignored and the Personal Directory version is used instead.



Using the new parameter voIpProt.SIP.specialEvent.checkSync.downloadDirectory, administrators can configure the phone to download the updated directory files upon receipt of a checksync NOTIFY message.



The files are downloaded when the phone restarts, reboots, or when the phone downloads any software or configuration updates.



Troubleshooting:



VVX Phone Range



Lowering the Database log level (Settings > Logging > Module Log Level Limits)

image or log.level.change.dbs="1"





0819104912|dbs  |1|00|Executing command [INSERT OR IGNORE INTO dbDir VALUES('John','Doe','','1001','','','1','ringer3','','','0','0','0','0','','','','','','','','','','1')] from polyapp
0819104912|dbs  |0|00|Completed execution of 'INSERT OR IGNORE INTO dbDir VALUES('John','Doe','','1001','','','1','ringer3','','','0','0','0','0','','','','','','','','','','1')' in 16 ms
0819104912|dbs  |3|00|Application 256 has subscribed to table dbDir, events (65535), token (8)
0819104912|dbs  |1|00|Executing command [INSERT OR IGNORE INTO dbDir VALUES('Jane','Parker','','1002','','','2','ringer3','','','0','0','0','0','','','','','','','','','','1')] from polyapp
0819104912|dbs  |0|00|Completed execution of 'INSERT OR IGNORE INTO dbDir VALUES('Jane','Parker','','1002','','','2','ringer3','','','0','0','0','0','','','','','','','','','','1')' in 17 ms
0819104912|dbs  |3|00|Application 256 has subscribed to table dbDir, events (65535), token (9)
0819104912|dbs  |1|00|Executing command [INSERT OR IGNORE INTO dbDir VALUES('Bill','Smith','','1003','','','3','ringer3','','','0','0','0','0','','','','','','','','','','1')] from polyapp
0819104912|dbs  |0|00|Completed execution of 'INSERT OR IGNORE INTO dbDir VALUES('Bill','Smith','','1003','','','3','ringer3','','','0','0','0','0','','','','','','','','','','1')' in 12 ms
0819104912|dbs  |3|00|Application 256 has subscribed to table dbDir, events (65535), token (10)



SPIP / SSIP Phone range



image log.level.change.cfg="1"



000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(2): returning "1001"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(1): returning "John"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(0): returning "Doe"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(4): returning "1"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(5): returning "3"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(6): field does not exist
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(8): returning "0"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(7): returning "0"
000011.060|cfg  |1|03|Dir|Contact|1001|fieldGet(11): field does not exist
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(2): returning "1002"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(1): returning "Jane"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(0): returning "Parker"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(4): returning "2"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(5): returning "3"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(6): field does not exist
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(8): returning "0"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(7): returning "0"
000011.060|cfg  |1|03|Dir|Contact|1002|fieldGet(11): field does not exist
000011.060|cfg  |1|03|Dir|Contact|1003|fieldGet(2): returning "1003"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(1): returning "Bill"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(0): returning "Smith"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(4): returning "3"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(5): returning "3"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(6): field does not exist
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(8): returning "0"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(7): returning "0"
000011.062|cfg  |1|03|Dir|Contact|1003|fieldGet(11): field does not exist
------------------------------------------------
Notice: I am an HP Poly employee but all replies within the community are done as a volunteer outside of my day role. This community forum is not an official HP Poly support resource, thus responses from HP Poly employees, partners, and customers alike are best-effort in attempts to share learned knowledge.
If you need immediate and/or official assistance for former Poly\Plantronics\Polycom please open a service ticket through your support channels
For HP products please check HP Support.

Please also ensure you always check the General VoIP , Video Endpoint , UC Platform (Microsoft) , PSTN
HP Recommended

Central Phonebook



When using an Poly ObiEdition X50 Phone


On the Phone use the Web Interface (Check with the Service Provider for the Admin password usually admin / admin) to navigate User Settings > User Preferences > Phone Book Settings > and provide a URL where the phone can download the XML formatted phone book.


NOTE: The Phone supports either HTTP or TFTP!

Copy the URL to the ImportURL




A sample file is attached:





<?xml version="1.0" encoding="utf-8"?>
<PolyPhoneBook version="1.0">
  <item>
    <name>Abc Def</name>
    <number>1111111111111</number>
    <service>SP1</service>
    <ringtone>/data/ringtones/Bell A.wav</ringtone>
    <lastname>Def</lastname>
    <firstname>Abc</firstname>
    <mobilenumber>2222222222222</mobilenumber>
    <homenumber>44444444444444</homenumber>
    <officenumber>33333333333</officenumber>
    <faxnumber>555555555555555</faxnumber>
    <company>Abc Co</company>
    <group>Customers</group>
    <email>ad@abc.com</email>
    <address>1 ADG Rd, Johnstown, DD, 888888</address>
    <defaultnumber>generic</defaultnumber>
  </item>
</PolyPhoneBook>







  1. On the phone when displaying the idle screen




  2. Press the Menu Key and select Contacts




  3. Press More and select Import and follow the on screen instructions




Speed Dials



The phone can also store up to 99 Speed Dials. These can be added via User Settings > User Preferences > Speed Dials:




------------------------------------------------
Notice: I am an HP Poly employee but all replies within the community are done as a volunteer outside of my day role. This community forum is not an official HP Poly support resource, thus responses from HP Poly employees, partners, and customers alike are best-effort in attempts to share learned knowledge.
If you need immediate and/or official assistance for former Poly\Plantronics\Polycom please open a service ticket through your support channels
For HP products please check HP Support.

Please also ensure you always check the General VoIP , Video Endpoint , UC Platform (Microsoft) , PSTN
† The opinions expressed above are the personal opinions of the authors, not of HP. By using this site, you accept the <a href="https://www8.hp.com/us/en/terms-of-use.html" class="udrlinesmall">Terms of Use</a> and <a href="/t5/custom/page/page-id/hp.rulespage" class="udrlinesmall"> Rules of Participation</a>.
