HP Deskjet 2632
Microsoft Windows 10 (64-bit)

Good morning. I am trying to print on a custom-sized paper but the OK on the HP 'print settings' is greyed out. When I select the custom size I've created and named, the Advanced box comes up and I change it there too. Still get a greyed out OK. The same happens when I try to print A5. I am using Open Office. Thank you in advance.

1 ACCEPTED SOLUTION

Accepted Solutions
HP Recommended

@GruffsMum



What the printer can do:

Product Specifications for the HP DeskJet 2632 All-in-One Printer (V1N05B)

Media sizes supported (metric)
A4; B5; A6; DL envelope
Media sizes supported (U.S. standard)
Letter; Legal; 4 x 6 in; 5 x 7 in; 8 x 10 in; No. 10 envelopes
Media sizes, custom (metric)
89 x 127 to 215 x 279 mm
Media sizes, custom (U.S. standard)
3 x 5 to 8.5 x 14 in
Media types
Plain paper, Photo paper, Brochure paper
Borderless printing
No



A5, because it is not listed, is likely considered to be a "Custom Size".



===============================================================================

Create your custom paper size form(s)



General How-to

HP Document:

HP Printers - Creating Custom Paper Sizes



Control Panel > icon view > Devices and Printers

Right-Click Printer > Printing Preferences

Tab Paper / Quality > Custom





Reminder for those reading -

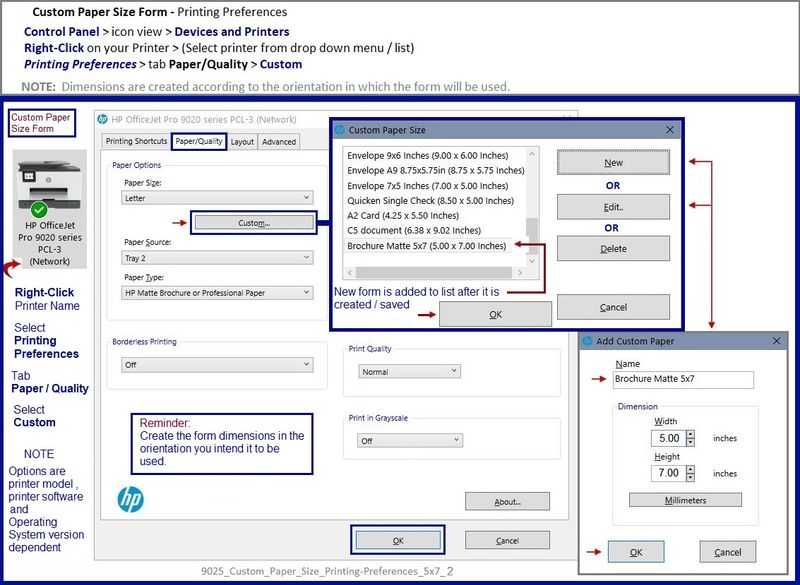

Example - Create Custom Paper Size form in Printing Preference



9025_Custom_Paper_Size_Printing-Preferences_5x7_29025_Custom_Paper_Size_Printing-Preferences_5x7_2





Next...

If you have not done so,

Before you send the job to the printer and right after you change / load the paper into the printer tray,

Be sure the printer is aware of the "different" paper loaded into the printer.





Basics



Load / Check paper size into printer

Check / Adjust at the printer display panel and / or EWS

Windows >> Adjust Printing Preferences / Shortcut



Details



Load the paper into the printer according to the instructions in the printer user guide.





Paper already loaded?

Open tray – Wait a few seconds – Close tray - Update information - Continue

Done that?  Stuck?

Open tray - Remove paper - Gently flex the stack - Return paper to tray - Close tray - Update information - Continue





Check / Adjust / Retain the Paper at the Printer Display Panel



Section is not applicable to printers lacking a printer display panel.



Open Printer Tray,

If you have not yet done so, Remove / add desired paper size - type

else

Wait a few seconds

Close Tray

IF applicable for your printer:

On the Printer Control Display Panel,

Click Modify / Change / No-Yes (wording varies), adjust the paper size and type, Click OK



No Size?  If the size of the Paper Size is not in the Drop-down list, Select Custom

Note:  Not all printers allow selection of “Custom”



=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=

Embedded Web Server (EWS)



EWS option is applicable to network connected printers.



Reminder

No Size?  If the size of the Paper Size is not included in the Drop-down list, Select Custom

Note:  Not all printers allow selection of “Custom”



If the printer is on the network,

If the EWS feature is supported on your printer,

Use the Embedded Web Server (EWS) to view / configure your printer.



Verify / Update Tray and Paper Information



EWS – Browser

Open your favorite browser > type / enter Printer IP address into URL / Address bar

Tab Settings > Preferences > Tray and Paper Management

If applicable, check the Advanced section (at the bottom of the Tray and Paper Management menu)

Click Apply to save changes



EWS - HP Smart for Mobile - iOS

Reminder: The EWS Tray and Paper settings must be updated before you open the object to be printed.

Open HP Smart (for mobile)

Open Settings

Open Add / Set Up a Printer

Scroll down, Click, Tray and Paper

As Available:  Check / Adjust settings in Advanced

Click Apply to save changes



EWS - HP Smart – Windows

Start HP Smart Application

Printer Settings

In section Settings > Advanced

Tab Settings > Preferences

Tray and Paper Management

As Available:  Check / Adjust settings in Advanced

Click Apply to save changes





If applicable, check the Advanced section (at the bottom of the Tray and Paper Management menu)

Click Apply to save changes



NOTES

  • Size not listed in the Drop-down menu?  If available:  Select Custom (likely the last selection in the list)
  • EWS is also available in HP Smart Windows and HP Smart Mobile > Settings > Advanced
  • Features and options differ by printer model and type.



=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=

Set the Preferences – Windows



This section is not applicable to Mobile Printing.



Printing Preferences are available directly from the driver and / or might be called "Printer Properties" / "Shortcuts" (or similar) from within printing software / applications.



Preferences and Envelopes:

Select / leave Printing Preferences shortcut to "Everyday Printing" or something equally benign.



- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Preparation > Check / enable the printer as the “Default Printer”



Settings > Devices > Printers and scanners

UNCHECK (clear box) Let Windows manage my default printer

Select (Left-Click) your printer from the list of printers > Manage > Set as Default



- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -



Printing Preferences – Shortcuts / Selections



Settings > Devices > Printers and scanners

Left-Click on (your) Printer > Manage > Printing Preferences



Next

Tab Printing Shortcuts

Click / Highlight your preferred Shortcut

Click Apply > Click OK to exit



Optional - Additional Setup / Information



Make changes to a Shortcut (Model Dependent)

  • Select your Shortcut (locked or custom) >
  • Adjust the settings for paper, source (tray), other settings
  • Check all sub-menus in all Tabs
  • Click OK to save / leave sub menu



Custom Shortcut

On the main Preferences menu,

Save the edited shortcut or use “Save As” or “Create Custom Shortcut” to save as a new / different file name

Click OK to save the setup



Side Bar:  Scan Menu for HP Scan

Open More > section,

Check / adjust settings in each sub-section

Click OK to save sub-menu changes



 =-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=



What else?



You mentioned that you could not adjust the Custom form setup.

If that has been cleared by creating the Custom paper form(s) using Printing Preferences,

that is, you do now have a "custom paper size form" that you can see and select,

Any final "can't get there from here" issues might have to do with the actual document.



What to do?

Create / Edit the page size of the document itself to match the dimensions of the paper on which you will print that document.



Creating the document in the same size as the paper might not be necessary - doing so might eliminate some possible odd behavior.



Reminder:

Be sure you don't make the margins around the edge of the document too small - might be best to stick to 1/2 inch all around.



Document Page Size Setup



I don't have Open Office Installed.

I would guess the location where you change the Page Size is not the same as would be done in Word - of course, if it is, easy to change:  Word document open > Layout > Size



Not?

I have Libre Office installed.

Might be similar to Open Office in this respect...

Open document in Writer (or whatever Open Office calls "Word)

Format > Page Style

Adjust the Paper Format for format type, width, height / length, orientation.

Save...





Will that "do it"?

Maybe



Good Luck.





HP Printer Home Page - References and Resources – Learn about your Printer  - Solve Problems

 “Things that are your printer”

NOTE:  Content depends on device type and Operating System

Categories:  Alerts, Access to the Print and Scan Doctor (Windows), Warranty Check, HP Drivers / Software / Firmware Updates, How-to Videos, Bulletins/Notices, Lots of How-to Documents, Troubleshooting, Manuals > User Guides, Product Information (Specifications), more

When the website support page opens, Select (as available) a Category > Topic > Subtopic

HP DeskJet 2632 All-in-One Printer



Thank you for participating in the HP Community.

The Community is a separate wing of the HP website - We are not an HP business group.

Our Community is comprised of volunteers - people who own and use HP devices.

Click Thumbs Up to say Thank You.

Question Resolved / Answered, Click "Accept as Solution"

Dragon-Fur

View solution in original post
